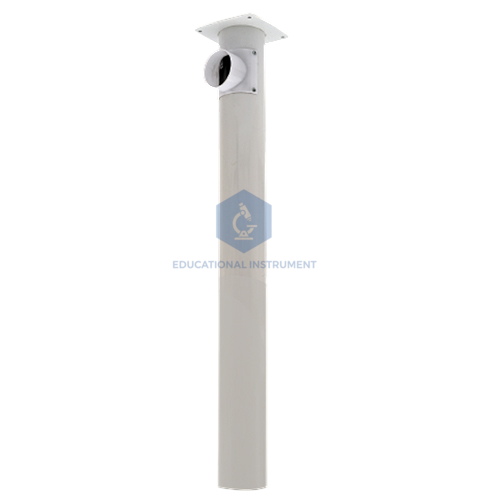

Bracket for Spot Extractor
.png)
Product Code : SCL-WDF-11661
Engineered for the structural stabilization and secure mounting of articulating point-source fume extractors. This bracket is designed to support 360-degree rotation and high-frequency positioning required in University research laboratories, Secondary science facilities, and TVET vocational workshops. It facilitates compliance with ISO 14001 environmental safety standards by ensuring the rigid deployment of hazardous airborne contaminant removal systems.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Heavy-duty Cold Rolled Steel (CRS) with Epoxy Powder Coating |
|
Mounting Configuration |
Pre-drilled Wall or Ceiling mounting interface (Model dependent) |
|
Load Bearing Capacity |
Calibrated for standard 75mm and 100mm diameter extraction arms |
|
Coating |
Chemical-resistant, anti-corrosive finish (Oven-baked) |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
7308.90 (Structures and parts of structures of iron or steel) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Rigid Articulation Support. -> Outcome: Facilitates hands-on instruction in point-of-origin contaminant control, allowing students to demonstrate proficiency in Occupational Health and Safety (OHS) Protocol Module 201.
Feature: Precision-Engineered Pivot Point. -> Outcome: Enables students to analyze fluid dynamics and suction efficiency by varying extractor positioning, supporting Applied Physics and Ventilation Engineering Curricula.
Feature: Chemical-Resistant Coating. -> Outcome: Ensures the longevity of the laboratory infrastructure during high-frequency chemical analysis, reducing institutional overhead in Vocational (TVET) Laboratory Management.
International Logistics & Compliance
Our logistics framework is optimized for international institutional fulfillment and ministry-level procurement. Consignments are secured in export-grade seaworthy crating (ISPM-15 compliant) to maintain structural integrity during multi-modal transit. Documentation provided with each shipment includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification protocols upon request, and comprehensive installation manuals in English. The hardware features a tropicalized design, tested for resistance to oxidation and structural fatigue in environments up to 45°C and 90% non-condensing humidity.
Why Source from the OEM?
Procuring directly from the OEM ensures total vertical integration over the manufacturing process, from raw steel shearing to the final epoxy application. Unlike trader-sourced alternatives, our brackets are batch-tested for uniformity and load-stress performance to prevent structural failure in articulating systems. We maintain direct factory spares availability, including high-tension washers and pivot fasteners, ensuring that laboratory ventilation systems remain operational for the duration of the facility's lifecycle. Every unit is strictly monitored to meet OEM-exclusive mechanical tolerances, eliminating the variances common in third-party components.
