Centrifugal pumps are common machines used to move water and other fluids in many applications.
These can be domestic water systems, agriculture, sanitation and many industrial applications.

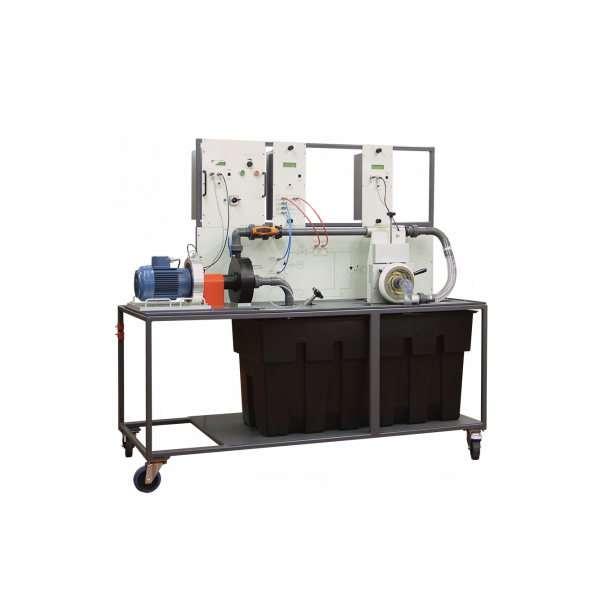

The module includes a centrifugal pump, a Venturi flowmeter, valves, a reservoir and instrumentation; all mounted on a robust, mobile trolley for ease of use.
Speed is fully variable up to the maximum allowable for the pump.
The turbines fit on the separate Turbine Dynamometer.
The Turbine Dynamometer fits onto the Centrifugal Pump Module.
The centrifugal pump delivery pipe then connects to the turbine.
A pressure transducer on the Centrifugal Pump Module measures the turbine inlet pressure.
The turbines and Turbine Dynamometer allow students to test three different turbines to find how they work and perform.
The centrifugal pump is also the power source for the optional turbines: a Pelton wheel, a Francis turbine and Propeller turbine.
The separate Universal Dynamometer measures and displays the speed and torque of the pump to calculate and display mechanical (shaft) power.
Electronic pressure transducers measure the pump inlet and delivery pressures and the Venturi differential pressure (flow rate).
