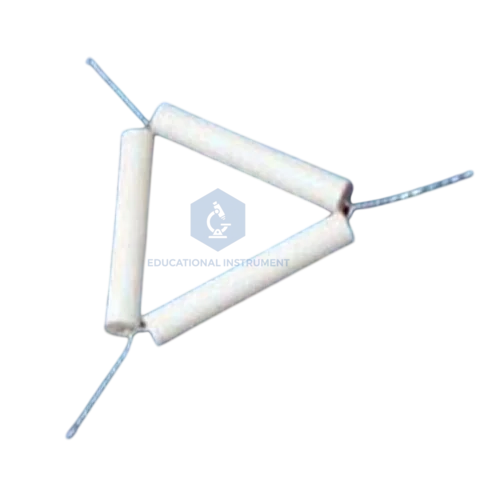

Clay Pipe Triangle/Crucible Triangle
.png)
Product Code : SCL-PW-11717
Engineered for high-temperature stabilization of porcelain and silica crucibles, this clay pipe triangle facilitates direct-flame heating protocols in Secondary and Vocational (TVET) laboratories. Adhering to BS 3450 industrial benchmarks, it mitigates thermal shock and structural deformation during gravimetric analysis. This instrument ensures uniform heat distribution while preventing vessel slippage in intensive undergraduate research environments.1
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Temperature Refractory Fireclay pipes; Galvanized Steel (GI) wire core |
|
Dimensions |
Standard side lengths: 50mm, 60mm, or 75mm available |
|
Thermal Resistance |
Sustained operational capacity up to 1000°C |
|
Corrosion Resistance |
Oxidation-resistant galvanized wire framework |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
6903.90 (Refractory Ceramic Laboratory Goods) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Refractory Clay Insulating Pipes. -> Outcome: Protects the internal wire core from high-intensity flame exposure, allowing students to evaluate chemical changes at extreme temperatures without support failure.
Feature: Twisted Galvanized Steel Framework. -> Outcome: Provides a high-tensile, slip-resistant platform, enabling learners to demonstrate precision in gravimetric analysis and moisture determination.
Feature: Three-Point Contact Geometry. -> Outcome: Optimizes heat convection around the crucible base, supporting the analysis of phase changes and thermal decomposition in thermodynamics modules.
International Logistics & Compliance
Consignments are secured in export-grade seaworthy crating (ISPM-15 compliant) with inner moisture-barrier lining to prevent wire oxidation during multi-modal transit. Documentation provided with each shipment includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification protocols, and User Safety Data Sheets in English. The tropicalized design is batch-tested for corrosion resistance in environments reaching up to 45°C and 90% non-condensing humidity, ensuring 15-year operational utility for this Educational Instrument across diverse geographical regions.
Why Source from the OEM?
Procuring directly from the OEM ensures total Vertical Integration over the refractory manufacturing process, effectively eliminating the "Trader" perception and technical variance. Our facility manages the entire production cycle—from in-house wire drawing and high-pressure ceramic extrusion to precision assembly. Unlike generic commercial-grade supports, every unit is batch-tested for uniformity in pipe length and wire gauge to exceed institutional safety benchmarks. We maintain direct factory spares availability, providing institutional buyers with a standardized support window and eliminating the operational risks associated with non-compliant aftermarket fittings.
