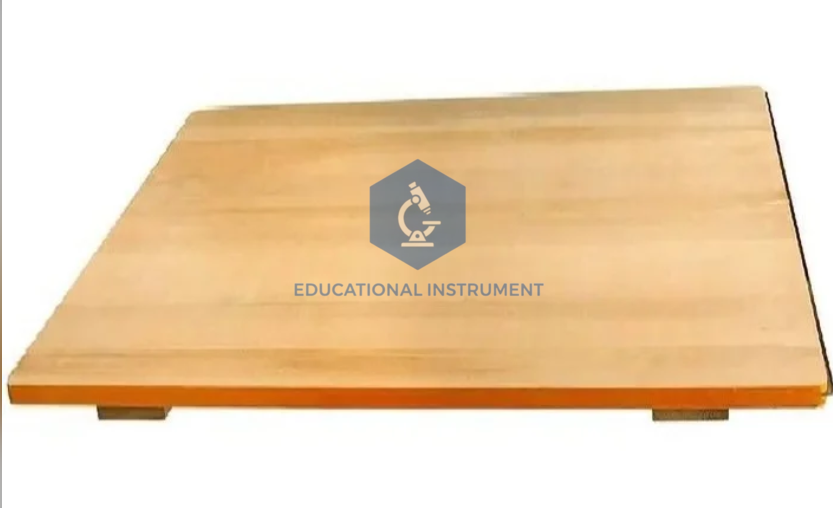

Drawing Board
.png)
Product Code : SCL-OS-12220
Engineered for high-precision orthographic projection and technical drafting, this Drawing Board provides a stable, warp-resistant surface for Engineering Graphics modules. Optimized for Vocational, Secondary, and Undergraduate levels, it facilitates the execution of complex geometric constructions and architectural layouts. The board integrates with standard T-squares and drafting machines, ensuring compliance with ISO and ANSI technical drawing standards for institutional laboratory environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Kiln-Dried Softwood (Pinewood/Fir) / High-Pressure Laminate Option |
|
Surface Finish |
Impact-Resistant, Smooth-Grain Sanded Finish |
|
Structural Integrity |
Batten-Reinforced Underside to Prevent Thermal Warping |
|
Working Edge |
Calibrated Ebony/Hardwood Inlaid Working Edge for T-Square Alignment |
|
Dimensions |
Standard B2 (500 x 700mm) / B1 (700 x 1000mm) / A3 (325 x 450mm) |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
9017.20.10 (Drawing Tables and Machines, whether or not automatic) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Batten-reinforced kiln-dried timber construction. Outcome: Provides a non-reactive, flat datum surface, allowing students to "Apply" geometric principles without surface-induced distortion.
Feature: Inlaid hardwood working edge. Outcome: Ensures consistent 90-degree alignment for T-squares, facilitating the "Create" stage of accurate 2D orthographic and 3D isometric projections.
Feature: Standardized Metric Dimensions Outcome: Supports the "Analyze" phase of scale-ratio calculations and border-line formatting in accordance with international drafting protocols.
International Logistics & Compliance
Every unit is prepared for global distribution using export-grade seaworthy crating (ISPM-15 compliant) to protect board edges from impact during transit. Procurement documentation is comprehensive, including the Manufacturer’s Authorization Form (MAF), Quality Control (QC) Certificate of Conformity, and instruction sheets in English. The instrument features a tropicalized design, with wood treatment tested for dimensional stability in environments up to 45°C and 90% Humidity, preventing expansion or fungal growth in diverse climates.
Why Source from the OEM
Procuring directly from the OEM ensures vertical integration of the manufacturing process, from raw timber seasoning to precision edge inlaying. Every Educational Instrument is batch-tested for surface flatness and edge linearity to eliminate inaccuracies in student drafting. Sourcing through the manufacturer guarantees direct factory spares availability, consistent material grading across high-volume orders, and engineering-level support for specialized institutional tenders, ensuring long-term durability over trader-sourced alternatives.
