Flat Plate Drag Model

Flat Plate Drag Model

Product Code : EL-AEFT-11262

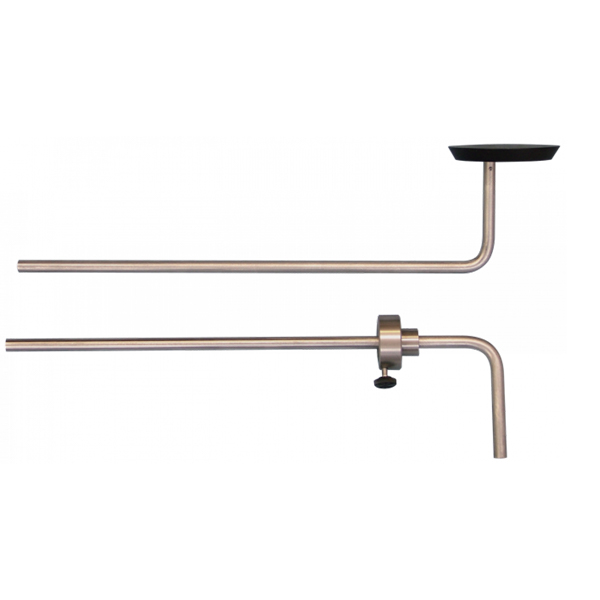

Quick Answer: The Flat Plate Drag Model shows the flow around a bluff body mounted normal to the air flow direction and the drag force exerted on it. A holder supports the model in the tunnel.

Last updated: October 2026

Key Features

  • Flat plate set normal to the air flow as a bluff body
  • Holder supports the model in the tunnel
  • Can be held by the optional Three-Component Balance or Single-Component Lift and Drag Balance to measure the drag

About This Product

The model gives a simple bluff-body case for drag studies, set face-on to the oncoming air. Fitting it to one of the optional balances turns the flow demonstration into a drag measurement.

Frequently Asked Questions

What is needed to measure drag with the Flat Plate Drag Model?

The model is held by either the optional Three-Component Balance or the Single-Component Lift and Drag Balance, which then measures the drag.

Related: Aerodynamics Equipment for Training, Three Dimensional Drag Models, Drag Force and Basic And Drag Balance.

For a quotation on the Flat Plate Drag Model, contact Educational Instrument.
