Curved Structures and Davits
Product Code : EL-NGSP-11385

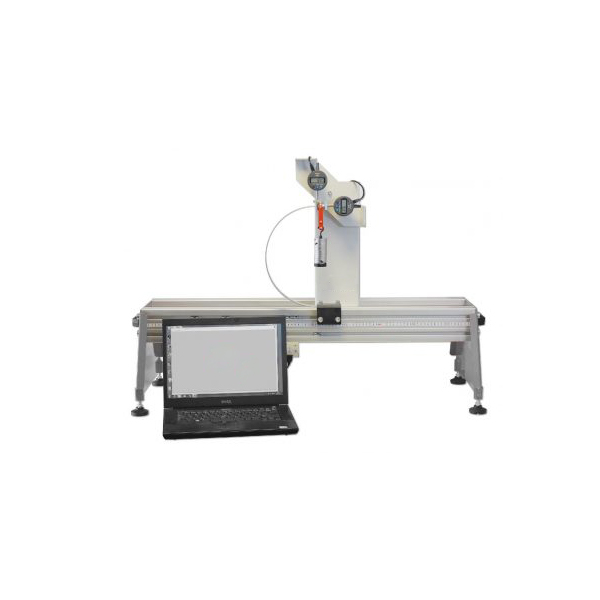

Quick Answer: The Curved Structures and Davits module fits the Structures platform (available separately) and shows the deflection of curved bars and davits used as simple load-bearing structures. Two indicators measure the deflection under a variable load.
Last updated: October 2026
Key Features
- Lower end of each curved bar or davit fits a fixing plate; the upper end carries a variable load
- Choice of curved bars and two davits
- Two deflection indicators with their own displays, measuring vertical and horizontal deflection
- Indicators connect to the USB interface hub of the Structures platform for computer display and data acquisition
- Vernier caliper included for measuring the cross-section of the bars and davits
Technical Specifications
| Specification | Value |
|---|---|
| Specimens | Curved bars; two davits |
| Deflection measurement | Two indicators with displays |
| Data | USB interface hub of the Structures platform |
| Accessory | Vernier caliper |
| Platform | Structures platform, available separately |
About This Product
Students load each curved member, record how far it moves vertically and horizontally, and compare the readings with elastic deflection theory. The davits relate the work to familiar real structures, while the plain curved bars give a clean basis for energy methods such as Castigliano theorem. Educational Instrument can arrange export supply of the Curved Structures and Davits to New Zealand, Sierra Leone, South Korea, Kyrgyzstan, Egypt and Seychelles.
Frequently Asked Questions
Is the Structures platform included with the Curved Structures and Davits module?
No. The module is one of a range that fits the Structures platform, which is available separately.
How is deflection recorded?
Two indicators measure vertical and horizontal deflection; they have their own displays and can connect to the platform USB interface hub for computer data acquisition.
Related: Next Generation Structures Products, Structures Platform Next Generation Structures and Frame Deflections and Reactions.
For a quotation on the Curved Structures and Davits, contact Educational Instrument.
