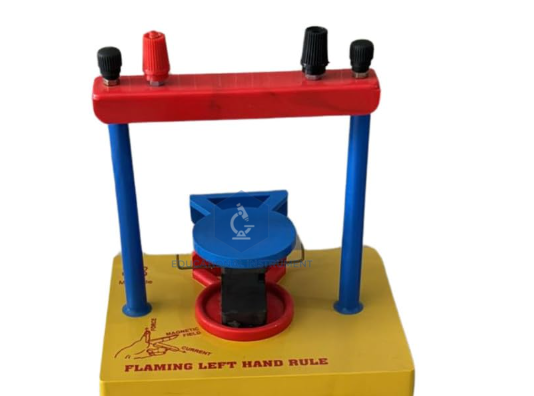

Fleming’s Left Hand Rule Apparatus
.png)
Product Code : SCL-TMFEEL-12164
This Educational Instrument facilitates the empirical validation of the Lorentz force acting on a current-carrying conductor within a magnetic field. Engineered for University and Vocational technical labs, it provides a calibrated platform for demonstrating the motor principle in accordance with standardized physics curricula. The unit ensures repeatable results for Analyzing (Bloom's Level 4) the orthogonal relationship between force, magnetic flux, and current.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Magnetic Assembly |
High-remanence permanent U-shaped magnet or solenoid mounting. |
|
Conductor Interface |
Lightweight, suspended copper/aluminum swing lead with low-resistance pivot points. |
|
Base Construction |
Ruggedized non-magnetic insulated base with integrated 4mm safety terminals. |
|
Measurement Capability |
Visual deflection tracking for force directionality analysis. |
|
Material Grade |
Aerospace-grade aluminum and UV-stabilized industrial polymers. |
|
Dimensions |
[Omitted - Not specified in source; technical drawings available on request]. |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems. |
|
HS Code |
9023.00.00 (Instruments, apparatus and models, designed for demonstrational purposes). |
Key Pedagogical Outcomes
Feature: Suspended Free-Swing Conductor. Outcome: Provides immediate visual feedback of electromagnetic force vectors, supporting Electromagnetics Module 301.
Feature: Reversible Polarity Terminals. Outcome: Allows students to empirically verify the change in force direction upon current reversal, supporting the "Predict and Test" Bloom's taxonomy phase.
Feature: High-Flux Magnet Placement. Outcome: Ensures significant deflection even at low currents, allowing for safe laboratory operation without high-amperage power supplies.
Feature: Integrated 4mm Safety Sockets. Outcome: Ensures secure and standardized electrical connections, minimizing experimental noise and enhancing student safety during high-frequency laboratory rotations.
International Logistics & Compliance
To satisfy the requirements of international procurement officers, this Educational Instrument is secured in export-grade seaworthy crating (ISPM-15 compliant) to prevent structural or magnetic degradation during multi-modal transit. Every shipment includes a Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive Technical Manuals in English. The hardware features a tropicalized design, tested for operational integrity in environments up to 45°C and 90% humidity, ensuring that the non-magnetic chassis and conductive swing leads maintain dimensional stability and conductivity across diverse climates.
Why Source from the OEM
Procuring directly from the OEM ensures total vertical integration of the supply chain, which is critical for maintaining the specific magnetic tolerances required for successful demonstration. Unlike third-party traders, our facility maintains in-house CNC machining of conductor leads and batch-tests every magnet for flux uniformity. Direct factory sourcing guarantees the availability of original factory spares for a minimum of 10 years and provides a direct line to engineering support, mitigating the risk of instructional downtime in technical institutions.
