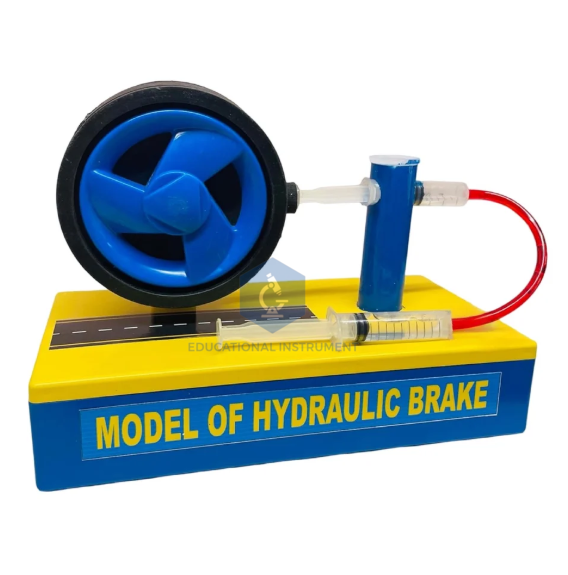

Hydraulic Brake Model
.png)
Product Code : SCL-TMFEEL-12157
Engineered for Technical and Vocational Education and Training (TVET), this demonstrational unit provides a functional representation of multi-wheel hydraulic braking systems. It facilitates the practical application of Pascal’s Law within automotive engineering frameworks. Designed for polytechnic and undergraduate laboratories, the model ensures tactile comprehension of master/slave cylinder synchronization and fluid dynamics under variable pressure loads.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
System Configuration |
Full-circuit layout including Master Cylinder and four Wheel Cylinders. |
|
Actuation Mechanism |
Manual foot-pedal/lever assembly with return spring functionality. |
|
Component Material |
Corrosion-resistant alloy cylinders and friction-ready brake shoe linings. |
|
Fluid Transmission |
Transparent, high-pressure reinforced tubing for visual fluid flow analysis. |
|
Base Construction |
Heavy-duty, epoxy-coated metallic frame or high-density laminated board. |
|
Operational Principle |
Fluid pressure distribution (Pascal’s Law) and mechanical-to-hydraulic conversion. |
|
HS Code |
9023.00 (Instruments, apparatus and models, designed for demonstrational purposes). |
|
ISO Compliance |
Manufactured under ISO 9001:2015 Quality Management Systems. |
Key Pedagogical Outcomes
Mechanical Advantage Analysis: Functional lever/pedal assembly allows students to calculate input force versus output pressure, supporting Applied Physics modules.
Fluid Dynamics Visualization: Transparent circuit lines enable the observation of fluid displacement and potential air-bubble interference (bleeding procedures).
Synchronized Braking Distribution: The multi-cylinder layout demonstrates uniform pressure distribution across four points, validating the core tenets of Pascal's Law.
Maintenance & Troubleshooting: Removable components permit the demonstration of brake shoe wear, cylinder seal failure, and hydraulic system purging.
International Logistics & Compliance
This educational instrument is prepared for global distribution with a focus on long-term durability in diverse climates.
Packaging: Export-grade, seaworthy plywood crating (ISPM-15 compliant) to prevent transit damage.
Documentation: Every unit is accompanied by a Manufacturer’s Authorization Form (MAF), a detailed Technical Manual in English, and Certificate of Origin (COO).
Durability: Tropicalized design featuring anti-corrosive coatings on all metallic surfaces, tested for sustained operation in high-humidity environments (up to 90% RH).
Calibration: Factory-tested for leak-proof integrity under maximum manual actuation force.
Why Source from the OEM
Procuring directly from the manufacturer ensures vertical integration and long-term institutional support. Unlike third-party traders, our production facility maintains:
In-house Casting & Machining: Complete control over the tolerances of cylinders and pistons to ensure smooth, repeatable laboratory results.
Direct Factory Spares: Guaranteed availability of replacement seals, transparent tubing, and brake linings for a minimum of 10 years post-purchase.
Batch-Tested Uniformity: Every model undergoes a pressure-hold test before dispatch to ensure "out-of-the-box" readiness for curriculum delivery.
