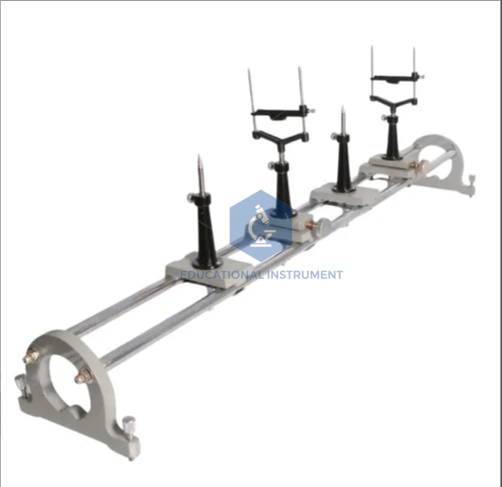

Optical Bench Half Shaper
.png)
Product Code : SCL-OS-12233
Engineered for the empirical determination of focal lengths and image formation properties, this Half-Shaper Optical Bench facilitates high-precision alignment in geometric optics experiments. Optimized for Advanced Secondary and Vocational TVET laboratories, the instrument ensures adherence to standardized physics curricula requirements for linear path measurement. The ruggedized chassis and calibrated sliding riders provide repeatable data acquisition in high-usage instructional environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Grade Seasoned Hardwood / Reinforced Aluminum Channel |
|
Graduation |
0 to 1000mm (Millimeter precision) |
|
Optical Support |
Sliding riders with vertical adjustment and centering capability |
|
Base Configuration |
Half-Shaper Profile for enhanced lateral stability |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
9023.00.00 (Instruments/Models for Demonstrational Purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Calibrated millimeter scale on a rigid half-shaper track. Outcome: Allows students to "Apply" thin-lens equations by measuring object and image distances with minimal parallax error.
Feature: Adjustable lens and mirror holders. Outcome: Facilitates the "Analysis" of real vs. virtual image formation across varying optical configurations.
Feature: Integrated leveling and alignment system. Outcome: Supports the "Evaluation" of experimental results by ensuring the optical axis remains consistent across the length of the track.
International Logistics & Compliance
Every Educational Instrument is prepared for global distribution using export-grade seaworthy crating (ISPM-15 compliant) to protect the calibrated track from mechanical deformation during transit. Standard procurement documentation includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive User Manuals in English. The bench features a tropicalized design, with moisture-resistant finishes tested for operational stability in environments up to 45°C and 90% Humidity, preventing track warping or graduation fading.
Why Source from the OEM
Procuring directly from the OEM ensures total vertical integration, from the precision seasoning of the hardwood chassis to the final calibration of the graduated scale. Every Optical Bench is batch-tested for uniformity in track linearity to eliminate experimental variance across large-scale institutional deployments. Sourcing through the manufacturer guarantees direct factory spares availability, in-house technical calibration services, and engineering-level support for specialized institutional tenders, providing a superior life-cycle value compared to trader-sourced alternatives.
