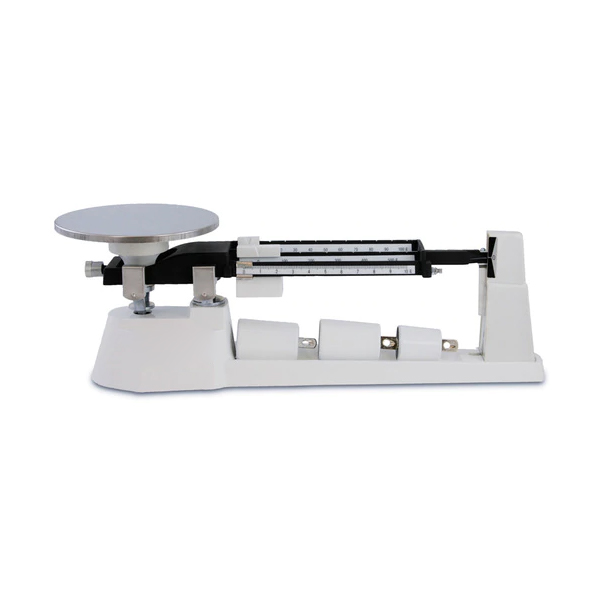

Quick Answer: The Balance Triple Beam is a single pan balance with three notched beams and centre-indicating sliding masses, giving a capacity of 610 g. Two 1000 g supplementary masses hung on the beam end raise the capacity to 2610 g.
Last updated: October 2026
Key Features
Three notched beams: 0 to 500 g x 100 g, 0 to 100 g x 10 g and 0 to 10 g x 0.1 g
Capacity 610 g on the beams alone
Capacity up to 2610 g with the 2 x 1000 g supplementary masses
Supplementary masses store in the recessed base when not needed
Magnetic damping
Stainless steel pan, 150 mm diameter
Technical Specifications
Specification
Value
Type
Single pan, triple beam
Capacity
610 g; up to 2610 g with supplementary masses
Beam 1
0 to 500 g x 100 g
Beam 2
0 to 100 g x 10 g
Beam 3
0 to 10 g x 0.1 g
Supplementary masses
2 x 1000 g
Damping
Magnetic
Pan
Stainless steel, 150 mm dia.
About This Product
A triple beam balance teaches students to find mass by moving riders along graduated beams until the pointer settles at zero. It is used for weighing chemicals, finding the density of solids and liquids and other routine mass measurements in school science. Educational Instrument can arrange export supply of the Balance Triple Beam to Benin, Grenada, Belgium, Kiribati and Mongolia.
Frequently Asked Questions
What is the maximum capacity of the Balance Triple Beam?
It weighs up to 610 g on its beams, and up to 2610 g when the two 1000 g supplementary masses are hung on the end of the beam.
Where are the supplementary masses kept?
They can be stored in the recessed base when not required.
