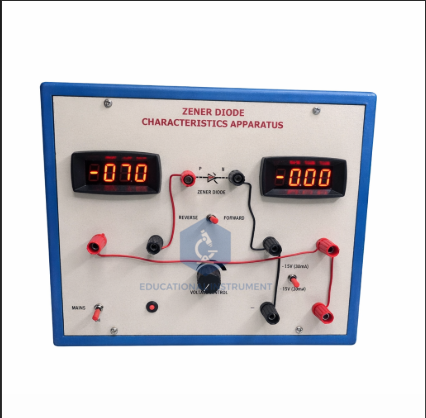

Digital Zener Diode Apparatus
.png)
Product Code : SCL-EI-12144
Quick Answer: The Digital Zener Diode Apparatus is a bench unit for plotting the V-I curve of a Zener diode, with a continuously variable 0-15V DC supply and two 3.5-digit displays for voltage and current. Current is read in µA for reverse leakage and mA for breakdown.
Last updated: October 2026
Key Features
- Continuously variable, stabilised 0-15V DC supply
- Voltage steps with 0.1V resolution
- Dual 3.5-digit displays for voltage and current
- Dual-range current reading: µA for leakage, mA for breakdown
- Built-in load resistors for voltage-regulator tests
- Circuit diagram printed on the panel; 4mm shrouded sockets
Technical Specifications
| Specification | Value |
|---|---|
| Power supply | Stabilised 0-15V DC, continuously variable |
| Displays | Dual 3.5-digit, voltage and current |
| Current ranges | µA (reverse leakage) and mA (breakdown) |
| Load | Integrated load resistors |
| Terminals | 4mm shrouded sockets |
| Input power | 220V/240V AC, 50Hz |
| Dimensions | Approx. 300mm x 250mm x 150mm |
About This Product
Students increase the bias in small steps to locate the knee voltage and the Zener breakdown point, reading voltage and current directly from the displays. Adding the load resistors shows how the diode holds the output steady as a simple voltage regulator in electronics practicals. Schools, colleges and institutes in Indonesia, Zimbabwe, Antigua and Barbuda, Burkina Faso, Ecuador and United Arab Emirates can order the Digital Zener Diode Apparatus from Educational Instrument.
Frequently Asked Questions
Can the apparatus show the Zener diode working as a regulator?
Yes. Integrated load resistors let students test the Zener diode as a voltage regulator.
Related: Electronic Instruments, Zener Diode Apparatus (Socket Type), Digital PN Junction Diode Apparatus and Digital Transistor Characteristics Apparatus.
For a quotation on the Digital Zener Diode Apparatus, contact Educational Instrument.
