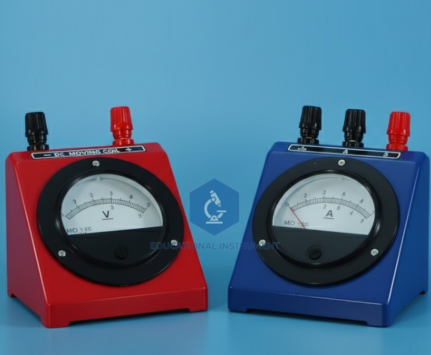

Moving Coil Meter, Round Dial, Top Terminal (Ammeters, Milli-Ammeters, Micro-Ammeters, Voltmeters and Galvanometer)
Product Code : SCL-MBAVTOB-11916
Quick Answer: The Moving Coil Meter, Round Dial, Top-Terminal is a spring-controlled PMMC meter for DC measurement with an 80–100 mm round dial and colour-coded 4 mm binding posts on the upper face. It is offered as an ammeter, milliammeter, microammeter, voltmeter or galvanometer.
Colour-coded 4 mm binding posts mounted on the upper face
ABS housing with glass face
Technical Specifications
Specification
Value
Movement
PMMC, spring-controlled
Dial diameter
80–100 mm
Accuracy
±1.5% to ±2.5% FSD
Terminals
4 mm binding posts, colour-coded, upper face
Housing
ABS with glass face
About This Product
Round-dial moving coil meters are used for DC current and voltage readings in circuit practicals, such as checking Ohm’s law, and as galvanometers to show the brief currents produced in electromagnetic induction experiments. The colour-coded posts help students connect the meter with the right polarity.
Frequently Asked Questions
Which versions of the Moving Coil Meter, Round Dial, Top-Terminal are made?
It is made as an ammeter, milliammeter, microammeter, voltmeter and galvanometer.
For a quotation on the Moving Coil Meter, Round Dial, Top Terminal (Ammeters, Milli-Ammeters, Micro-Ammeters, Voltmeters and Galvanometer), contact Educational Instrument.
