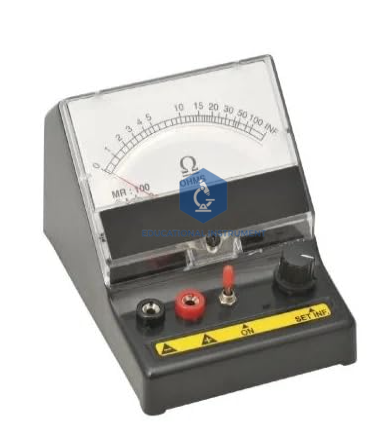

Quick Answer: The Ohm Meter is a direct-reading moving coil ohmmeter for measuring resistance, with a zero adjuster and single or dual ranges. Its accuracy is ±1.5% to ±2.5% of full scale deflection.
Last updated: October 2026
Key Features
Direct reading of resistance
PMMC movement with zero adjuster
Single or dual range versions, for low to high resistance
Accuracy ±1.5% to ±2.5% of full scale deflection
4 mm binding posts, colour-coded for polarity
ABS housing with acrylic dial cover
Technical Specifications
Specification
Value
Movement
PMMC with zero adjuster
Ranges
Single or dual range
Accuracy
±1.5% to ±2.5% FSD
Terminals
4 mm binding posts, colour-coded
Housing
ABS with acrylic dial cover
About This Product
An ohmmeter gives a resistance value straight from the scale without a bridge or a separate voltmeter and ammeter. It is used for checking resistors and other components and for tracing faults in student circuits. Educational Instrument can arrange export supply of the Ohm Meter to Suriname, South Sudan, Solomon Islands, Serbia and Kenya.
Frequently Asked Questions
Does the Ohm Meter have a zero adjustment?
Yes. The moving coil movement has a zero adjuster.
