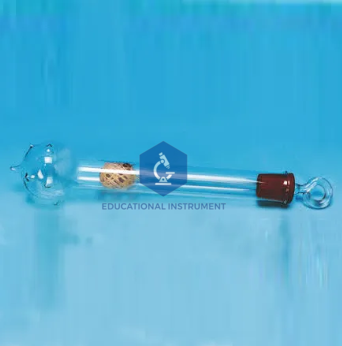

Simple Pascal Law Experiment (Pressure String)
Product Code : SCL-PLE-11831
The Multi-Directional Fluid Pressure Apparatus is an analytical tool for verifying the omnidirectional transmission of pressure in confined incompressible fluids. Engineered for University, Secondary, and TVET laboratory environments, this instrument facilitates empirical validation of Pascal’s Law and ISO/DIN fluid mechanics standards. It provides a robust, visual platform for quantifying pressure distribution across complex geometries in static liquid columns.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Primary Material Grade |
Machined Corrosion-Resistant Brass / Borosilicate 3.3 Glass |
|
Chamber Dimensions |
50mm Diameter Spherical Manifold |
|
Displacement Mechanism |
Precision-fit Internal Piston with High-Tolerance Seal |
|
Nozzle Configuration |
Multi-point circumferential orifices for simultaneous discharge |
|
ISO Compliance Code |
ISO 9001:2015 (Manufacturing) / ISO 3822 (Flow Pressure) |
|
HS Code |
9023.00 (Demonstrational Instruments and Apparatus) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
- Feature: Precision-Ground Piston Assembly.Outcome: Allows students to calculate applied force ($F=P \times A$) and observe the direct correlation between displacement and internal system pressure (Cognitive Level: Application).
- Feature: Multi-Point Circumferential Orifices.Outcome: Provides empirical evidence of "Pressure String" uniformity, demonstrating that pressure is transmitted undiminished in all directions (Cognitive Level: Analysis).
- Feature: High-Visibility Spherical Manifold.Outcome: Enables students to visualize fluid behavior and discharge velocity, supporting the verification of the Hydrostatic Paradox (Cognitive Level: Evaluation).
- Feature: Ruggedized Brass/Glass Construction.Outcome: Facilitates repeatable, high-cycle laboratory sessions, ensuring data consistency across multiple student cohorts (Cognitive Level: Synthesis).
International Logistics & Compliance
The "Educational Instrument" assembly is housed in export-grade, seaworthy crating (ISPM-15 compliant) designed to withstand the rigors of international shipping and long-term storage. Each unit is accompanied by a Manufacturer’s Authorization Form (MAF), comprehensive IQ/OQ/PQ Certification protocols, and English-language User Manuals. The tropicalized design is specifically calibrated for operational stability in high-ambient environments, tested for performance up to 45°C and 90% humidity.
Why Source from the OEM?
Procurement directly from the "Educational Instrument" facility ensures total vertical integration of the manufacturing process. Unlike traders, our production involves in-house metal fabrication and optical-grade glass blowing, ensuring every manifold is batch-tested for uniformity and structural integrity. Our commitment to institutional sustainability includes direct factory spares availability, ensuring that high-wear components like piston seals and manifold gaskets are accessible for decades of service.
