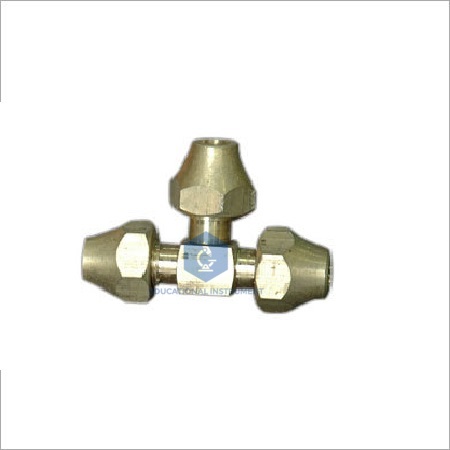

T-Joint, Brass
.jpg)
Product Code : SCL-WDF-11700
Engineered for high-integrity fluid and gas branching, this Brass T-Joint facilitates multi-node distribution in pressurized laboratory systems. Adhering to ISO 9001:2015 quality standards and ASTM B16 metallurgical benchmarks, it is optimized for University research facilities and Vocational (TVET) laboratories requiring ruggedized, leak-proof serrated interfaces for chemical and thermodynamic experimentation.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Tensile Forged Brass (CZ121/CW614N equivalent) |
|
Interface Configuration |
Triple Serrated (Ribbed) Nozzles for high-friction hose retention |
|
Dimensions |
Standardized Outer Diameters (OD) available: 6mm, 8mm, 10mm, 12mm |
|
Pressure Rating |
Calibrated for standard laboratory gas/fluid pressures up to 10 Bar |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
7412.20 (Copper alloy tube or pipe fittings - Brass) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Three-Way Serrated Manifold Geometry. -> Outcome: Allows students to construct complex parallel gas distribution circuits, supporting the "Apply" and "Analyze" levels of Fluid Dynamics Module 202.
Feature: High-Friction Ribbed Nozzles. -> Outcome: Ensures secure attachment of burner hosing, enabling learners to demonstrate mastery of Laboratory Safety Protocols and leak-mitigation techniques.
Feature: Corrosion-Resistant Brass Alloy. -> Outcome: Resists oxidation from reagent exposure, ensuring structural longevity and enabling students to evaluate the properties of non-ferrous materials in Vocational Engineering Blocks.
International Logistics & Compliance
Our global export infrastructure is optimized for ministry-level fulfillment and large-scale institutional tenders. Consignments are secured in export-grade seaworthy crating (ISPM-15 compliant) to maintain nozzle integrity and prevent mechanical deformation during multi-modal transit. Documentation provided with each shipment includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification protocols upon request, and Technical Data Sheets in English. The hardware features a tropicalized design, tested for operational reliability in environments reaching up to 45°C and 90% non-condensing humidity, preventing oxidation in humid coastal climates.
Why Source from the OEM?
Procuring directly from the OEM ensures total Vertical Integration and metallurgical accountability, effectively eliminating the technical variance found in generic commercial hardware. Our facility manages the entire production cycle—from in-house metallurgical forging to precision CNC milling of internal bores. Unlike trader-intermediated supplies, every unit is batch-tested for uniformity in wall thickness and pressure retention to exceed institutional safety benchmarks. We guarantee direct factory spares availability and modular scalability for large-scale laboratory fit-outs, providing institutional buyers with a standardized 10-year support window and eliminating the operational risks of non-compliant aftermarket fittings.
