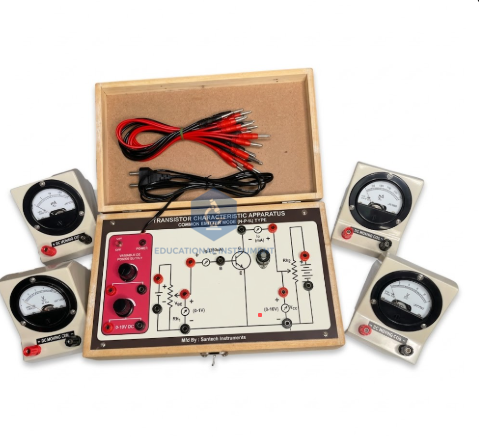

Transistor Characteristics Apparatus
.png)
Product Code : SCL-EI-12137
The Transistor Characteristics Apparatus (Gujarat Type) is a specialized instrumentation module engineered for the simultaneous empirical mapping of Input, Output, and Transfer characteristics of NPN/PNP transistors. Designed for University and Vocational engineering laboratories, it provides stabilized DC bias and multi-metering for precise alpha and beta parameter calculation. This calibrated educational instrument complies with ISO 9001:2015 standards for electronics technician training.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Integrated Power Supply (Base) |
Variable DC Regulated; 0–1.5V or 0–5V DC |
|
Integrated Power Supply (Collector) |
Variable DC Regulated; 0–15V DC |
|
Instrumentation (Voltage) |
Dual Analog Meters; Range 1.5V/15V DC |
|
Instrumentation (Current) |
Dual Analog Meters; Range 10mA / 250µA DC |
|
Semiconductor Support |
Onboard NPN and PNP Transistor Mounting |
|
Interface Port |
4mm Shrouded Color-Coded Safety Sockets |
|
Panel Construction |
High-Insulation Bakelite with Silk-Screened Circuit Schematic |
|
Enclosure Material |
Ruggedized ABS Plastic or Powder-Coated Metal Cabinet |
|
ISO Compliance Code |
ISO 9001:2015 Certified Production |
|
HS Code |
9023.00.10 |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Independent Dual Regulated DC Sources. Outcome: Enables students to "Analyze" the relationship between base-emitter voltage and collector-emitter voltage, supporting Microelectronics Module 101.
Feature: Multi-Range Micro-Ammeter and Milli-Ammeter. Outcome: Facilitates the "Evaluation" of current gain (Beta) and leakage current, reinforcing the understanding of active, cutoff, and saturation regions.
Feature: On-Panel Circuit Schematics with 4mm Sockets. Outcome: Allows students to "Construct" and troubleshoot common-emitter and common-base configurations, bridging the gap between theoretical physics and applied circuit engineering.
International Logistics & Compliance
This educational instrument is dispatched in export-grade seaworthy crating (ISPM-15 compliant) to ensure the integrity of the calibrated moving-coil meters during long-range intermodal transit. Comprehensive procurement documentation, including the Manufacturer’s Authorization Form (MAF), serialized IQ/OQ/PQ Certification, and technical manuals in English, is included. The hardware features a tropicalized design, batch-tested for operational stability in ambient temperatures up to 45°C and 90% non-condensing humidity, ensuring long-term durability in diverse climates.
Why Source from the OEM
Procuring directly from the Original Equipment Manufacturer ensures total vertical integration of the manufacturing cycle, from in-house PCB population to the precision calibration of the analog instrumentation. Unlike third-party traders, our facility provides direct factory spares availability and batch-tested uniformity across all units, ensuring consistent laboratory data acquisition. This direct engineering oversight maintains strict tolerance levels for electronic components, significantly lowering the Total Cost of Ownership (TCO) for institutional procurement.
