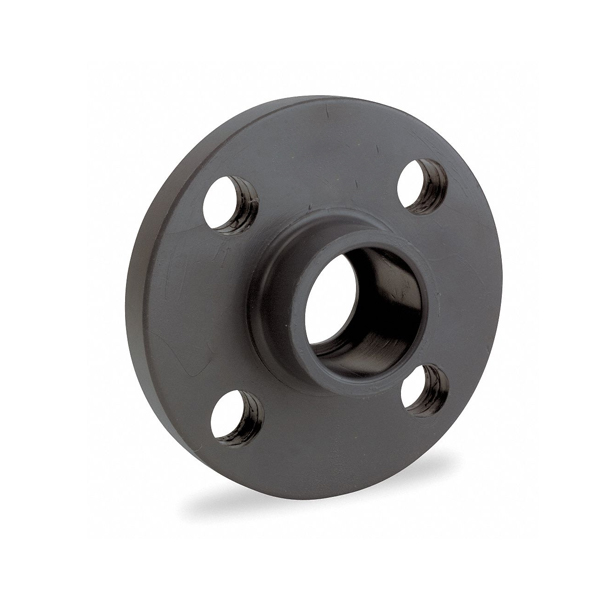

Quick Answer: The Flanged Coupling Socket is a uPVC coupling with a rubber-ring socket for 200 mm PVC pipe on one side and a flange for an 8 inch G.I. fitting on the other.
Last updated: October 2026
Key Features
Rubber-ring socket for PVC pipe
Flange end for connecting to G.I. fittings
Sizes 200 mm OD x 8 inch nominal
uPVC (unplasticised polyvinyl chloride)
Pressure rating 10 bar at 20 °C; temperature range 0 to 50 °C
Technical Specifications
Specification
Value
Type
Flanged coupling, rubber ring socket
PVC end
Rubber ring socket, 200 mm OD
Flange end
For G.I. fitting, 8 inch nominal
Material
uPVC
Pressure rating
10 bar at 20 °C
Temperature range
0 to 50 °C
About This Product
Flanged couplings join a large PVC main to flanged valves, meters or galvanised iron pipework, for example at a pumping station or a reservoir outlet. The rubber-ring socket lets the PVC pipe be pushed in without cement.
Frequently Asked Questions
What sizes does the Flanged Coupling Socket connect?
It takes a PVC pipe of 200 mm outside diameter in the rubber-ring socket and bolts to an 8 inch G.I. fitting at the flange.
