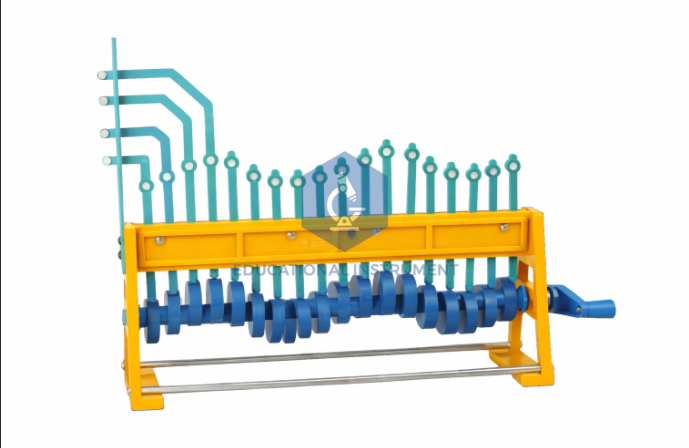

Wave Motion Apparatus – 18 Pulleys
.png)
Product Code : SCL-OS-12217
The Wave Motion Apparatus (18 Pulleys) facilitates empirical demonstration of transverse and longitudinal wave propagation through mechanical simulation. Engineered for University, Secondary, and Vocational TVET laboratories, this instrument enables the visualization of wavelength, amplitude, and phase shifts. Designed for high-frequency classroom use, it meets laboratory durability standards for structural and kinematic analysis of wave phenomena.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Seasoned Hardwood Base / Chrome-Plated Steel Rods / Low-Friction Synthetic Pulleys |
|
Configuration |
18-Pulley Array with Calibrated Offset Eccentric Cams |
|
Drive Mechanism |
Manual Crank-Handle with Direct-Drive Torque Transmission |
|
Dimensions |
Length: 450mm |
|
Vibration Isolation |
Non-slip Stabilizing Feet for High-Torque Operation |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
9023.00.00 (Instruments/Models for Demonstrational Purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: 18-element graduated pulley system. Outcome: Allows students to analyze the correlation between particle displacement and wave propagation, supporting "Analyze" level objectives in Harmonic Motion modules.
Feature: Eccentric cam drive with fixed phase offsets. Outcome: Facilitates the visual isolation of transverse and longitudinal phase shifts, allowing students to "Evaluate" the structural differences between wave types.
Feature: Synchronized crank-driven movement. Outcome: Provides a repeatable mechanical model for measuring wave frequency and velocity, supporting "Apply" level experimental validation and data recording.
International Logistics & Compliance
International shipments are secured using export-grade seaworthy crating (ISPM-15 compliant) to ensure mechanical alignment and cam synchronization are preserved during intercontinental transit. Comprehensive procurement documentation is provided with every consignment, including the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical User Manuals in English. The apparatus features a tropicalized design, with treated wood and anti-corrosive metal coatings tested for operational stability in environments up to 45°C and 90% Humidity.
Why Source from the OEM
Sourcing directly from the OEM ensures structural integrity through the vertical integration of all mechanical and wooden components. Every Wave Motion Apparatus is batch-tested for uniformity in cam eccentricity and pulley friction coefficients to ensure precise, jitter-free wave simulation. Procurement through the manufacturer guarantees direct factory spares availability, in-house machining tolerances, and professional engineering support, eliminating the calibration risks and logistics delays associated with third-party traders.
