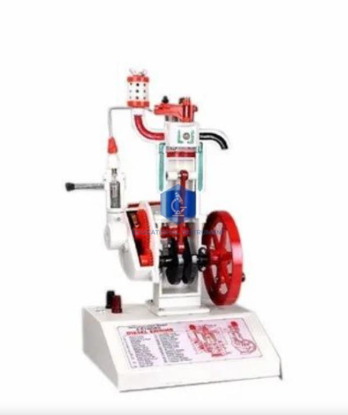

Diesel Engine Model Four Stroke
.png)
Product Code : SCL-TMFEEL-12176
This Educational Instrument provides a high-fidelity sectional analysis of internal combustion thermodynamics. Engineered for Vocational (TVET) and University-level automotive labs, it facilitates the empirical study of the Diesel cycle (compression ignition). The model allows for the quantification of valve timing and piston stroke synchronization, adhering to ISO quality standards for technical instructional equipment in secondary and higher education.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
System Configuration |
Four-stroke, water-cooled simulation (Sectional) |
|
Material Grade |
Ruggedized cast alloy and impact-resistant polymer components |
|
Mechanical Interface |
Hand-cranked flywheel for manual cycle regulation |
|
Valve Mechanism |
Synchronized overhead valve (OHV) assembly via camshaft |
|
Visual Indicators |
Integrated LED/Light simulation for fuel injection and ignition |
|
ISO Compliance Code |
ISO 9001:2015 Manufacturing Quality Standards |
|
HS Code |
9023.00 (Instruments, apparatus and models for demonstrational purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Synchronized Sectional Cutaway. Outcome: Allows students to visualize the mechanical coordination between the crankshaft, connecting rod, and piston, supporting Kinematics Module 201.
Feature: Integrated Ignition Simulation (LED). Outcome: Demonstrates the precise timing of fuel injection at the peak of the compression stroke, facilitating the study of compression-ignition physics.
Feature: Manual Crank Operation. Outcome: Enables the deceleration of the four-stroke cycle (Intake, Compression, Power, Exhaust) for step-by-step observation and calculation of valve overlap.
Feature: Color-Coded Intake and Exhaust Manifolds. Outcome: Assists in the identification of gas exchange pathways, supporting Fluid Dynamics and Thermodynamics curricula.
International Logistics & Compliance
To ensure the protection of calibrated mechanical linkages during multi-modal transit, this Educational Instrument is secured in export-grade seaworthy crating (ISPM-15 compliant). The procurement package is delivered with a Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical User Manuals in English. The unit features a tropicalized design, utilizing oxidation-resistant alloys and non-degrading polymers tested for sustained operational integrity in environments reaching 45°C and 90% humidity.
Why Source from the OEM
Procuring from the Original Equipment Manufacturer ensures vertical integration across the fabrication process, from the precision casting of the engine block to the synchronized machining of the cam lobes. Unlike third-party traders, our facility provides batch-tested uniformity in gear mesh tolerances and electrical timing accuracy. Direct factory engagement guarantees institutional long-term viability through immediate spares availability and consistent specification matching for large-scale tender fulfillments.
