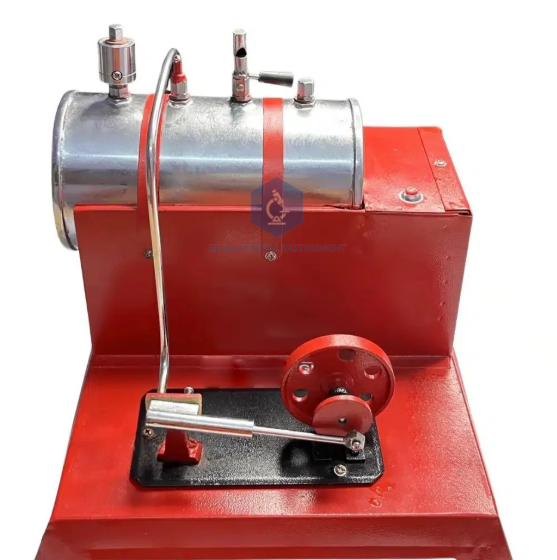

Steam Engine Model with Boiler
.png)
Product Code : SCL-TMFEEL-12178
This Educational Instrument provides a functional, closed-system simulation of the Rankine cycle and phase-change energy conversion. Engineered for University-level thermodynamics and Vocational Technical Education (TVET), it facilitates the empirical study of heat-to-mechanical work ratios. The unit adheres to standard safety protocols for pressurized vessel demonstrations, enabling precise observation of steam expansion and flywheel momentum in a controlled laboratory environment.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Boiler Construction |
High-conductivity heavy-gauge brass with heat-resistant insulation |
|
Engine Configuration |
Reciprocating piston-driven horizontal assembly |
|
Material Grade |
Ruggedized cast alloy frame and oxidation-resistant fittings |
|
Safety Mechanisms |
Calibrated pressure release valve and weighted safety lever |
|
Transmission |
Friction-reduced flywheel with integrated belt-drive pulley |
|
Fluid Control |
Precision-machined steam whistle and flow regulation valve |
|
ISO Compliance Code |
ISO 9001:2015 (Manufacturing Quality Management) |
|
HS Code |
9023.00 (Instruments and models designed for demonstrational purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Pressurized Brass Boiler. Outcome: Allows for the observation of saturated steam generation and pressure buildup, supporting Thermodynamics Module: Laws of Energy Conversion.
Feature: Functional Steam Whistle and Control Valve. Outcome: Demonstrates fluid dynamics and the manual regulation of steam flow for kinetic energy control.
Feature: Synchronized Piston and Flywheel Linkage. Outcome: Visualizes the transformation of linear expansion into rotational kinetic energy, facilitating the study of mechanical advantage and momentum.
Feature: Integrated Safety Release System. Outcome: Provides a practical demonstration of industrial safety systems and overpressure mitigation protocols in pressurized environments.
International Logistics & Compliance
To ensure the structural integrity of pressurized components and high-tolerance mechanical linkages during multi-modal transit, this Educational Instrument is dispatched in export-grade seaworthy crating (ISPM-15 compliant). The documentation package includes a Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical User Manuals in English. The unit utilizes a tropicalized design, featuring corrosion-resistant alloys and high-temperature seals tested for sustained operational reliability in environments up to 45°C and 90% humidity.
Why Source from the OEM
Procuring directly from the OEM ensures vertical integration of the manufacturing process, from the hydraulic pressure-testing of boiler vessels to the dynamic balancing of flywheels. Unlike third-party traders, our facility utilizes batch-testing for seal uniformity and mechanical friction coefficients. Direct factory engagement guarantees long-term institutional viability through consistent spares availability for all high-wear components and immediate access to engineering-level technical support.
