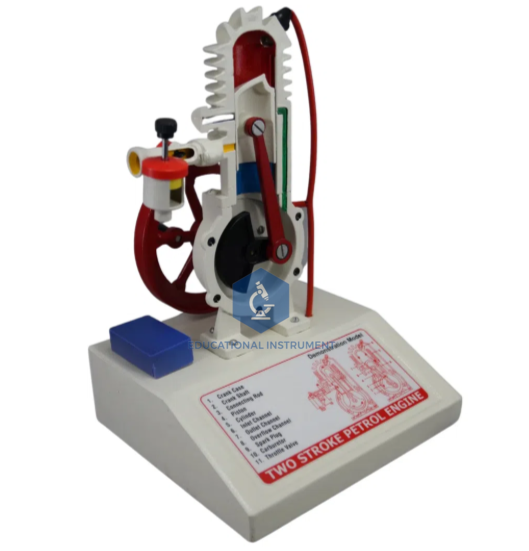

Two Stroke Petrol Engine Model
.png)
Product Code : SCL-TMFEEL-12166
Engineered for technical and vocational training, this sectional model facilitates the empirical study of internal combustion thermodynamics and port-timing synchronization. Optimized for secondary and vocational engineering labs, it demonstrates the two-stroke cycle under ASTM-aligned mechanical principles. The unit enables students to analyze piston displacement, scavenging, and ignition timing within a ruggedized, tactile framework.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Model Architecture |
Sectional cut-away for internal component visualization. |
|
Material Grade |
Ruggedized Aluminum Alloy and Cast Iron components; high-impact polymer base. |
|
Actuation |
Manual hand-crank for controlled velocity stroke analysis. |
|
Indicator Systems |
Integrated simulated spark plug with synchronized LED/Light pulse. |
|
Mechanical Linkages |
Calibrated connecting rod, crankshaft, and port-alignment assemblies. |
|
Dimensions |
[Metric data omitted - provided upon formal RFQ]. |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems. |
|
HS Code |
9023.00 (Instruments, apparatus and models, designed for demonstrational purposes). |
Key Pedagogical Outcomes
Feature: Sectional Cylinder Head and Block. Outcome: Allows students to visualize the simultaneous compression and intake phases, supporting Thermodynamics Module 201.
Feature: Synchronized LED Spark Simulation. Outcome: Facilitates the identification of the exact ignition point relative to Top Dead Center (TDC), enhancing Bloom’s Level 3 (Application) of timing concepts.
Feature: Manual Crank Actuation. -Outcome: Enables granular observation of port-opening sequences (Inlet, Transfer, and Exhaust), assisting in the analysis of gas scavenging efficiency.
Feature: Color-Coded Internal Gas Paths. Outcome: Differentiates between fresh air-fuel mixture and exhaust gases, aiding in the conceptual mapping of two-stroke fluid dynamics.
International Logistics & Compliance
This Educational Instrument is engineered for global procurement and deployment. Packaging consists of export-grade seaworthy crating (ISPM-15 compliant) to ensure structural and finish integrity during multi-modal transit. Standard documentation includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive User Manuals in English. The model features a tropicalized design, tested for operation and storage in environments up to 45°C and 90% humidity, preventing oxidation of machined surfaces and maintaining the dielectric strength of electronic timing components.
Why Source from the OEM
Direct procurement from the OEM ensures vertical integration of the manufacturing process, moving beyond simple assembly to core component precision. Unlike third-party traders, our facility maintains in-house die-casting and precision machining of all engine sections, ensuring batch-tested uniformity and strict tolerance adherence. Sourcing directly provides institutional buyers with guaranteed factory spares availability for a minimum of 10 years and direct access to engineering-level technical support, securing the long-term viability of the educational asset.
