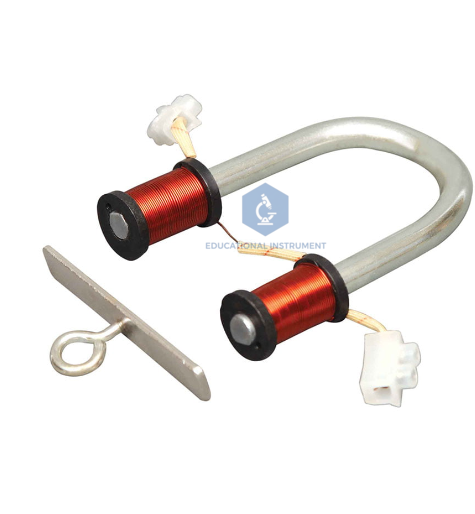

Electromagnet ‘U’ shape
.png)
Product Code : SCL-OS-12251
Engineered for the empirical study of magnetic flux density and the motor effect, this U-shaped electromagnet facilitates high-intensity field generation for Secondary and Vocational TVET curricula. It enables the quantitative verification of Ampere’s Law and electromagnetic lifting power under ASTM-aligned testing conditions. Optimized for high-volume institutional use, the unit provides repeatable data for foundational physics and electrical engineering modules.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Soft-Iron Core for High Magnetic Permeability ($\mu$) |
|
Winding Configuration |
Precision-Layered Insulated Copper Coils with Dual-Terminal Interface |
|
Component Assembly |
Removable Armature with Integrated Suspension Hook |
|
Dimensions |
Standardized U-profile (Dimensioned for 6V-12V DC Input) |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
8505.11.00 (Electromagnets; permanent magnets and articles intended to become permanent magnets) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: High-permeability soft-iron core. Outcome: Allows students to Analyze the relationship between core saturation and magnetic field strength, supporting Electromagnetism Module .
Feature: Dual-coil series/parallel winding capability. Outcome: Enables students to Evaluate the effect of number of turns and current on magnetic lifting force .
Feature: Precision-ground pole faces and armature. Outcome: Supports the Application of magnetic circuit theory by minimizing air-gap reluctance during quantitative weight-bearing experiments.
International Logistics & Compliance
Every unit is prepared for global distribution using export-grade seaworthy crating (ISPM-15 compliant) to protect the precision-wound coils and iron core integrity during transit. Standard procurement documentation includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive technical User Manuals in English. The apparatus features a tropicalized design, with vacuum-impregnated coil insulation and anti-corrosive core treatments tested for operational stability in environments up to 45°C and 90% Humidity, preventing oxidation and dielectric breakdown.
Why Source from the OEM
Procuring directly from the OEM ensures total vertical integration, from the in-house annealing of the soft-iron core to the automated precision-winding of the copper solenoids. Every U-Shaped Electromagnet is batch-tested for uniformity in coil resistance and lifting capacity to eliminate experimental variance across large-scale institutional deployments. Sourcing through the manufacturer guarantees direct factory spares availability, in-house technical support for institutional tenders, and the ability to customize winding specifications for specific voltage requirements, providing superior life-cycle value over trader-sourced alternatives.
