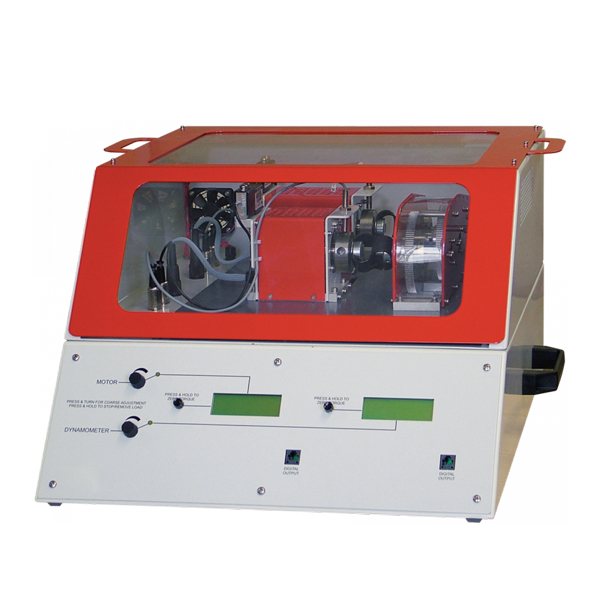

Geared Systems
Product Code : EL-TOMP-11415
Quick Answer: Geared Systems is a bench-mounting base unit for dynamic tests on drive units, with a variable-speed, low-voltage motor driving the input and a dynamometer loading the output. A gear unit is supplied and can be set as a simple or compound drive.
Last updated: October 2026
Key Features
- Variable-speed, low-voltage motor provides the input effort
- Dynamometer with electromagnetic braking and a hysteresis effect gives a variable load at constant torque irrespective of speed
- Motor and dynamometer on axial trunnions with race bearings, turning freely against load cell sensors to measure torque
- Flexible couplings with collets for quick, accurate alignment of the drive unit
- Sensors measure shaft speed, torque and power in and out; fans air-cool the motor and dynamometer
- Supplied gear unit set as a simple or compound drive by sliding a gear in or out of mesh on the third shaft
Technical Specifications
| Specification | Value |
|---|---|
| Base | Bench-mounting base unit |
| Input | Variable-speed, low-voltage motor |
| Load | Dynamometer, electromagnetic braking with hysteresis effect |
| Measurements | Shaft speed, torque, input and output power |
| Couplings | Flexible, with collets |
| Cooling | Fans on motor and dynamometer |
| Gear unit | Supplied; simple or compound drive |
About This Product
Students run a drive unit at a set input speed while the dynamometer brakes the output, then use the measured input and output power to work out the performance and efficiency of the drive. Switching the gear unit between simple and compound arrangements lets them compare the two gear trains on the same base unit. Enquiries from France, Afghanistan, Mongolia, Bulgaria and Cabo Verde for the Geared Systems receive an export quotation.
Frequently Asked Questions
Which drive unit comes with Geared Systems?
A gear unit is supplied. It can be set as a simple or compound drive by sliding a gear in or out of mesh on the third shaft.
How does the dynamometer load the drive?
It uses electromagnetic braking and a hysteresis effect to give a variable load at a constant torque irrespective of speed.
Related: Theory of Machines Products, Governors and Journal Bearing Demonstration.
For a quotation on the Geared Systems, contact Educational Instrument.
