Quick Answer: Free Vibration of Mass Spring System is a vibration experiment in which a test spring suspends a balanced mass platform that vibrates vertically on two guide rods. A non-contacting displacement sensor records the motion.
Last updated: October 2026
Key Features
Back panel fixes to the Test Frame and holds two vertical guide rods

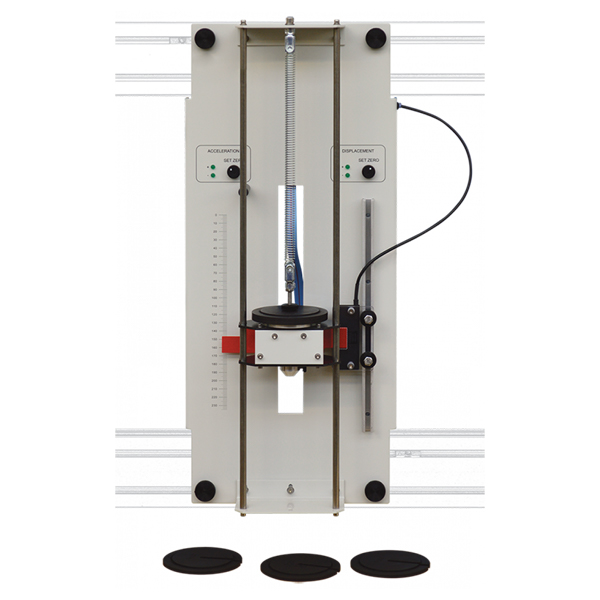

Test spring suspends a balanced mass platform
Non-contacting displacement sensor
Printed scale on the back panel
Software shows displacement and acceleration waveforms and calculates velocity and acceleration from displacement
Technical Specifications
Specification
Value
Oscillator
Balanced mass platform on a test spring
Guidance
Two vertical guide rods
Sensor
Non-contacting displacement sensor
Scale
Printed on back panel
Mounting
Back panel to the Test Frame
About This Product
A mass on a spring is one of the easiest oscillators to explain, because students can link Hooke’s Law directly to simple harmonic motion. They pull the platform down, release it, measure the frequency and compare it with theory, then use the waveforms to confirm the phase difference between displacement and acceleration.
Frequently Asked Questions
What does the software show?
Displacement and acceleration waveforms, so students can see the phase difference and measure frequency. It also calculates velocity and acceleration from the displacement, so measured and derived acceleration can be compared.
