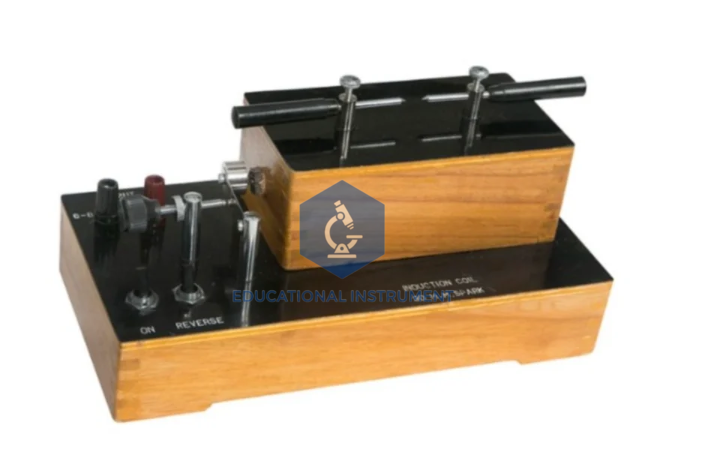

Induction Coil Apparatus
.png)
Product Code : SCL-OS-12240
Engineered for the generation of high-potential atmospheric discharges and the excitation of spectral gas tubes, this Induction Coil Apparatus facilitates the empirical study of Faraday’s Law and electromagnetic transients. Optimized for University and Vocational TVET physics laboratories, the unit ensures stable spark-gap performance under continuous duty cycles. It complies with international safety standards for high-voltage dielectric insulation in instructional environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Dielectric Ebonite/Acrylic End Plates; Enamelled Copper Windings |
|
Core Construction |
Laminated Soft Iron Core to minimize Eddy Current losses |
|
Spark Gap Capacity |
Adjustable Platinum-tipped Interrupter for precise frequency modulation |
|
Insulation |
Vacuum-impregnated primary and secondary windings |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
8504.33.00 (Inductors; Static Converters; Transformers) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Adjustable platinum-point interrupter. Outcome: Allows students to "Analyze" the relationship between switching frequency and secondary EMF induction, supporting Electromagnetism Module 201.
Feature: Transparent/Exposed winding architecture. Outcome: Facilitates the "Evaluation" of transformer turn-ratios and self-induction principles through direct visual correlation.
Feature: Dual-terminal spark-gap assembly. Outcome: Supports the "Application" of dielectric breakdown theories and the ionization of gases in low-pressure discharge tubes.
International Logistics & Compliance
Every unit is prepared for global distribution using export-grade seaworthy crating (ISPM-15 compliant) to ensure the integrity of fine-gauge secondary windings and delicate interrupter mechanisms during transit. Standard procurement documentation includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive technical User Manuals in English. The apparatus features a tropicalized design, with high-tension insulation tested for operational stability in environments up to 45°C and 90% Humidity, preventing dielectric leakage or moisture-induced short-circuiting.
Why Source from the OEM
Procuring directly from the OEM ensures total vertical integration, from the precision winding of secondary coils to the in-house metallurgical treatment of the soft iron core. Every Induction Coil Apparatus is batch-tested for peak voltage output and thermal stability to eliminate experimental variance across high-volume laboratory deployments. Sourcing through the manufacturer guarantees direct factory spares availability for interrupter points and capacitors, in-house technical calibration services, and engineering-level support for specialized institutional tenders, providing a superior life-cycle value compared to trader-sourced alternatives.
