Lamps in Parallel Kit STEM Lab

Product Code : SCL-EI-12573

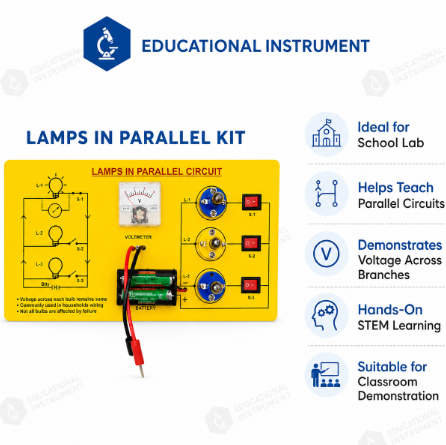

Introduce students to the foundational mechanics of electrical engineering and circuit design with the laboratory-grade Lamps in Parallel Kit STEM Lab, engineered and manufactured exclusively by Educational Instrument India. As a leading name in high-durability school science equipment and technical training kits, we have developed this robust benchtop apparatus to clearly isolate and demonstrate the behavior of voltage, current, and resistance within parallel electrical networks.

Unlike basic, flimsy wire-and-board hobby kits, our professional STEM Lab is built upon an impact-resistant, high-insulation panel featuring a vivid, scratch-proof schematic map printed directly on its surface. The board is configured with multiple heavy-duty light bulb sockets arranged in parallel branches. Each individual branch is equipped with its own dedicated toggle switch, allowing students to systematically break or close paths to observe circuit behavior in real time.

Designed seamlessly for middle school science modules, high school physics laboratories, and introductory technical institutes, this kit transforms abstract circuit diagrams into an intuitive, tactile learning tool. It provides a crisp, visual demonstration of why household wiring relies on parallel circuits, proving how individual electrical appliances operate independently of one another.

Key Features and Benefits

Independent Branch Control: Every lamp branch features an isolated mechanical toggle switch, cleanly demonstrating that interrupting one path does not stop the flow of electricity to the other operational bulbs.

Vivid On-Board Schematics: High-contrast circuit paths are silk-screened on the base panel, directly bridging the gap between textbook circuit symbols and real physical components.

Safe, Shrouded Connections: Utilizes professional 4mm banana jack sockets and insulated patch cords, minimizing wire fraying and ensuring a completely shock-free learning environment for younger students.

Integrated Multimeter Test Points: Features dedicated inline connection ports across the network, making it effortless to insert ammeters and voltmeters without dismantling the entire circuit layout.

Rugged Academic Construction: Built using thick, non-conductive ABS plastic housing and industrial-grade nickel-plated copper components designed to withstand years of heavy classroom usage.

Product Specifications

How to Use It

The Lamps in Parallel Kit STEM Lab is optimized for straightforward, plug-and-play classroom experiments. Follow this structured roadmap to perform precise electrical analysis:

Station Setup: Place the circuit board on a level, dry laboratory bench. Verify that all independent branch switches are flipped to the "OFF" position.

Power Supply Integration: Connect a low-voltage DC power source (such as a 3V battery pack or a regulated lab power supply set to 3V–6V) to the main positive and negative input terminals using the provided banana patch cords.

Observing Parallel Autonomy: Turn on the main power supply and flip the first branch switch to "ON." The first lamp will light up. Flip the remaining switches on and off in various sequences to witness how the operational state of one bulb has zero effect on the brightness or functionality of the others.

Simulating Component Failure: Turn all branch switches to "ON" so all lamps are illuminated. Carefully unscrew one bulb from its socket to simulate a broken appliance filament. Observe that the remaining lamps continue to burn at identical brightness.

Quantifying Electrical Laws: Insert an external digital multimeter into the integrated test nodes to verify parallel circuit laws:

Measure the voltage drop across each lamp branch to show it matches the source voltage exactly

Measure branch currents to verify that total current is the sum of individual currents:

Calculate equivalent parallel network resistance using the formula:

Frequently Asked Questions (FAQs)

Q1: Why do the bulbs not get dimmer when more lamps are switched on in this parallel kit?

Ans: In a parallel circuit arrangement, each branch is connected directly across the main power source. This means every single lamp receives the full, identical voltage of the power supply regardless of how many paths are open. Because the voltage stays constant, the brightness of each individual bulb remains unchanged.

Q2: Does this kit run on standard AC wall outlets?

Ans: No. For maximum classroom safety, this kit is engineered strictly for low-voltage DC currents (3V to 6V). It should only be powered by standard laboratory battery boxes or regulated benchtop DC power supplies. Never connect this apparatus to an AC mains wall socket.

Q3: What happens if one of the light bulbs burns out during a lab session?

Ans: Because the kit maps a true parallel network, if one bulb burns out or is removed, the remaining branches stay entirely intact. The current continues to flow unimpeded through the operational paths. Replacement low-voltage bulbs (standard miniature MES threaded style) can easily be swapped in.

Q4: What makes the Educational Instrument India kit superior to DIY wire-and-wood options?

Ans: Our STEM lab board eliminates loose, messy alligator clips and exposed wires that cause short circuits or erratic data readings. By utilizing enclosed, gold-plated or nickel-plated 4mm banana sockets alongside a surface-printed circuit schematic, we offer an orderly, professional, and reliable setup that delivers highly repeatable scientific measurements.

Q5: Is this kit compliant with modern school education syllabi?

Ans: Yes. The Lamps in Parallel Kit STEM Lab is fully aligned with global STEM frameworks and national curricula (including CBSE, ICSE, and state boards) for teaching introductory electricity, Ohm's law, and Kirchhoff's laws in physics and environmental science programs.
