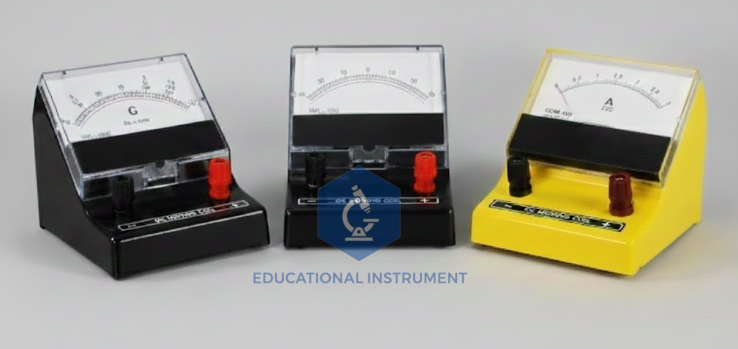

Moving Coil Meter, Rectangular Dial, Front Terminal, Superior, (Ammeters, Milli-Ammeters, Micro-Ammeters, Voltmeters and Galvanometer)
Product Code : SCL-MBAVTOB-11914
Quick Answer: The Moving Coil Meter, Rectangular Dial, Front Terminal, Superior is a PMMC meter with a wide-angle rectangular dial, made as an ammeter, milliammeter, microammeter, voltmeter or galvanometer. Its accuracy is ±2.0% to ±2.5% of full scale deflection.
Last updated: October 2026
Key Features
- Permanent magnet moving coil (PMMC) movement with pivot-and-jewel suspension
- Rectangular wide-angle dial
- Accuracy ±2.0% to ±2.5% of full scale deflection
- Front-mounted 4 mm binding posts
- ABS housing with transparent acrylic face
- Available as ammeter, milliammeter, microammeter, voltmeter and galvanometer
Technical Specifications
| Specification | Value |
|---|---|
| Movement | PMMC, pivot-and-jewel suspension |
| Dial | Rectangular, wide angle |
| Accuracy | ±2.0% to ±2.5% FSD |
| Terminals | Front-mounted 4 mm binding posts |
| Housing | ABS with acrylic face |
About This Product
This meter is used for DC measurements on the bench, including Ohm’s law verification and circuit analysis. Its wide-angle rectangular dial gives a linear scale that is easy to read without parallax. The Moving Coil Meter, Rectangular Dial, Front Terminal, Superior, (Ammeters, Milli-Ammeters, Micro-Ammeters, Voltmeters and Galvanometer) can be supplied on export terms to North Macedonia, Eswatini, Turkmenistan, Jordan and Honduras.
Frequently Asked Questions
What types are available in the Moving Coil Meter, Rectangular Dial, Front Terminal, Superior?
It is offered as an ammeter, milliammeter, microammeter, voltmeter and galvanometer.
Related: Meter Bridge and Various Type of Bridges, Moving Coil Meter, Rectangular Dial, Front Terminal (Ammeters, Milli-Ammeters, Micro-Ammeters, Voltmeters and Galvanometer), Moving Coil Meter, Round Dial, Front Terminal (Ammeters, Milli-Ammeters, Micro-Ammeters, Voltmeters and Galvanometer) and Moving Coil Meter.
For a quotation on the Moving Coil Meter, Rectangular Dial, Front Terminal, Superior, (Ammeters, Milli-Ammeters, Micro-Ammeters, Voltmeters and Galvanometer), contact Educational Instrument.
