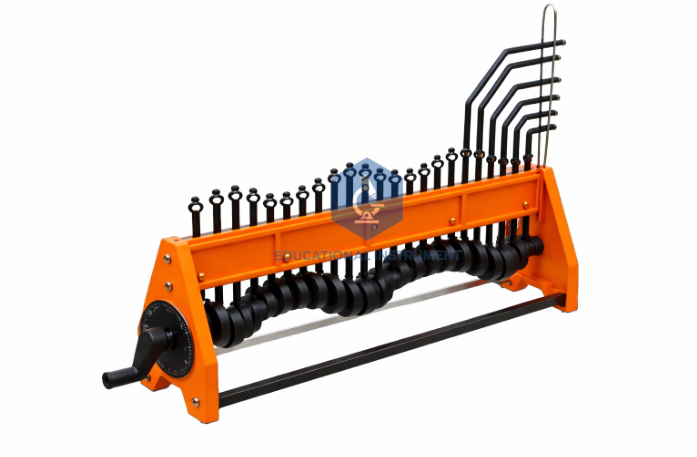

Wave Motion Apparatus – 24 Pulleys
.png)
Product Code : SCL-OS-12218
The 24-Pulley Wave Motion Apparatus facilitates high-resolution mechanical simulation of transverse and longitudinal wave propagation. Engineered for University and Vocational TVET curricula, this instrument enables precise empirical study of phase shifts, wavelength density, and amplitude modulation. It complies with international laboratory safety standards, providing a ruggedized solution for repeatable data acquisition in high-usage educational environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Seasoned Hardwood Base / Chrome-Plated Steel Rods / Low-Friction Synthetic Pulleys |
|
Configuration |
24-Pulley Array with Graduated Eccentric Cams |
|
Dimensions |
Length: 600mm |
|
Drive Mechanism |
Manual Rotary Crank with Direct-Drive Torque Transmission |
|
Vibration Isolation |
Non-slip Stabilizing Base for High-Torque Operation |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
9023.00.00 (Instruments/Models for Demonstrational Purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: 24-element graduated pulley array. Outcome: Increases the resolution of the wave profile compared to standard models, allowing students to "Analyze" complex harmonic interference and wavelength density with higher precision.
Feature: Dual-mode eccentric cam system. Outcome: Permits the simultaneous or isolated demonstration of longitudinal and transverse motion, enabling students to "Evaluate" particle displacement vectors relative to energy propagation directions.
Feature: Manual rotary drive with fixed phase offsets. Outcome: Provides a controlled, repeatable frequency for "Applying" mathematical wave equations to physical models, bridging the gap between theoretical calculus and mechanical reality.
International Logistics & Compliance
All units are secured using export-grade seaworthy crating (ISPM-15 compliant) to ensure mechanical synchronization and cam alignment are preserved during intercontinental transit. Documentation provided includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive technical manuals in English. The apparatus features a tropicalized design, with moisture-resistant treated wood and anti-corrosive metal coatings tested for operational stability in environments up to 45°C and 90% Humidity.
Why Source from the OEM
Direct sourcing from the OEM ensures total vertical integration of the mechanical drivetrain and structural chassis. Every 24-Pulley Wave Motion Apparatus is batch-tested for uniformity in cam eccentricity to eliminate mechanical jitter and ensure a smooth sinusoidal progression. Procurement through the manufacturer guarantees direct factory spares availability, precision-calibrated phase offsets, and specialized engineering support, eliminating the calibration risks and logistics delays inherent in third-party trading models.
