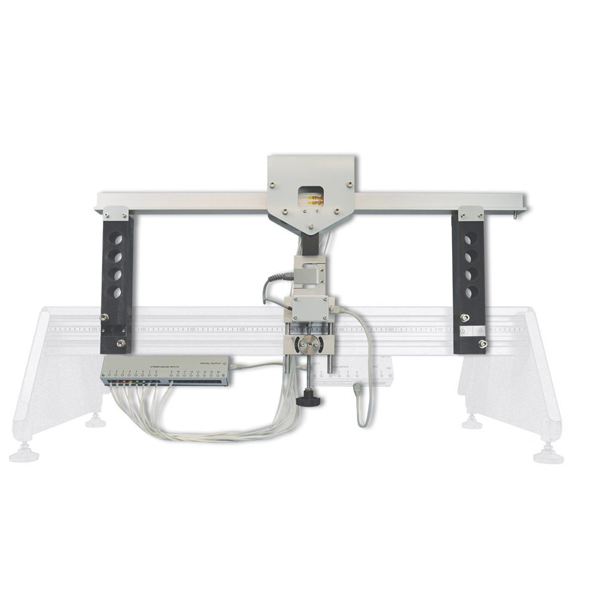

Bending Stress in a Beam

Bending Stress in a Beam

Product Code : EL-NGSP-11396

Quick Answer: Bending Stress in a Beam is a structures experiment in which a load cell measures the force applied at mid span while strain gauges at different heights up the beam measure the resulting strains.

Last updated: October 2026

Key Features

  • Load cell measures the force applied at the mid span of the beam
  • Strain gauges at different heights up the beam
  • Strain gauge amplifier connects to the Structures platform USB hub
  • Readings shown and logged on a computer

Technical Specifications

SpecificationValue
Load measurementLoad cell at mid span
Strain measurementStrain gauges at different heights up the beam
SignalStrain gauge amplifier
DataStructures platform USB interface hub

About This Product

Plotting strain against height shows how bending stress changes across the depth of the beam, from compression on one face through the neutral axis to tension on the other. Students compare these results with the values predicted by the textbook bending equations.

Related: Next Generation Structures Products, Bending Moments in a Beam, Simply Supported Beam and Plastic Bending of Beams.

For a quotation on the Bending Stress in a Beam, contact Educational Instrument.
